  • RDM-2000P-3T

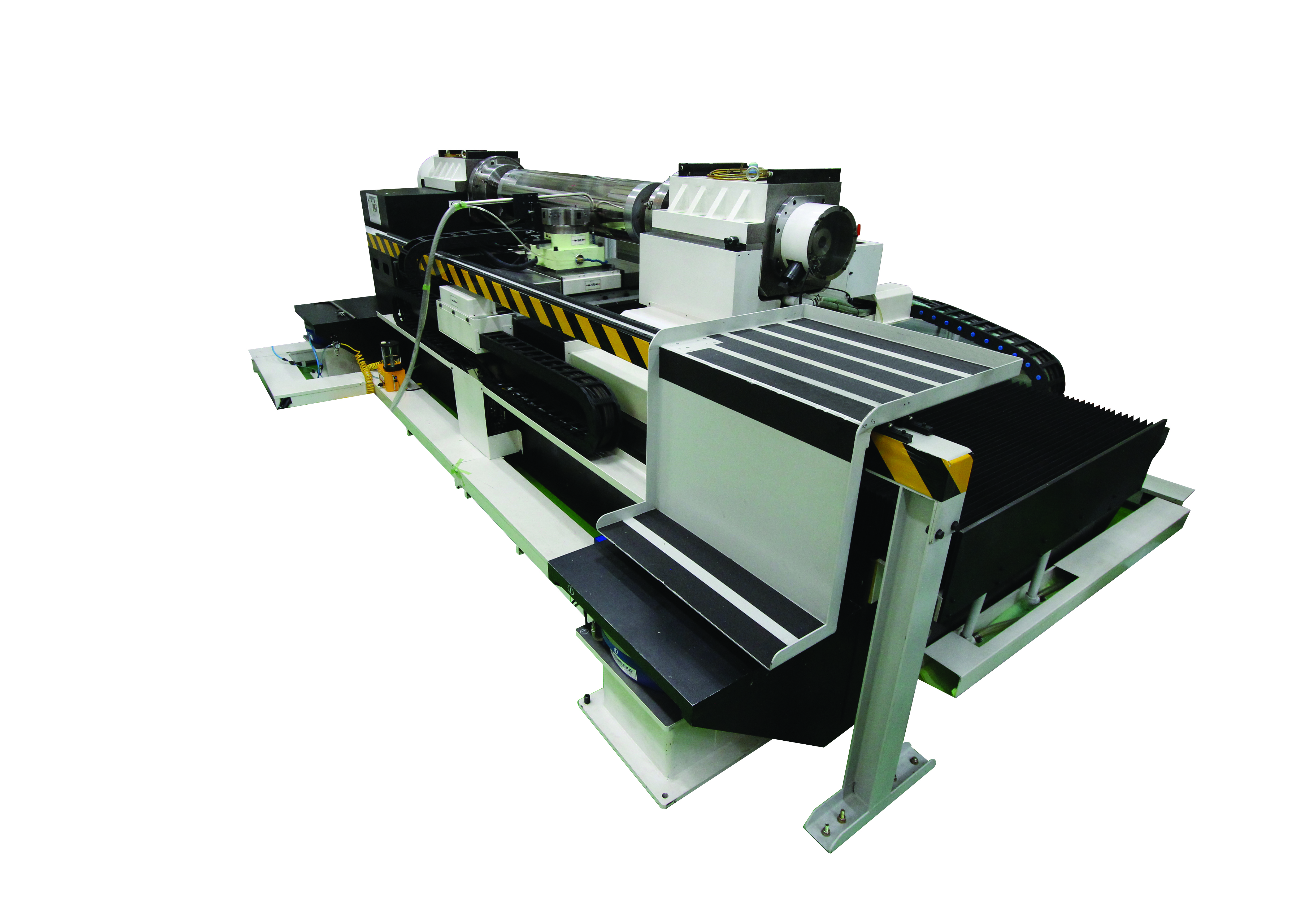

    RDM-2000P-3T

    Precision Lathe for Large-area Micro-structed Roll Molds

    가공물 최대중량 3000kg의 대형 원통면에

    초정밀 미세 패턴 가공을 수행하는 것을 주된 목표로 합니다.

    목록
Overview

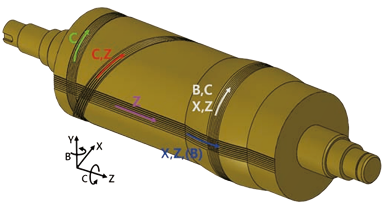

RDM 제품 개요 이미지
  • •Slide Travel : X 250mm, Z 2700mm
  • •Z-axis Feedrate : Max. 30 m/min
  • •Roll Diameter : 210mm ~ 600 mm
  • •Roll Weight : MAX. 3000 kgf
Process Capabilities
  • •Diamond Turning : X,Z
  • •Cylindrical Grooving : X,Z,B / X,Z,B,C / X,Z,C
  • •Fast Tool Servo : X,Z,C,FTS / X,Z,B,C,FTS
Design Features
  • •NO Friction Spindle & Slide
  • •1nm Feed Back Resolution
  • •Practical Design for Structure
  • •Granite Bed + Vibration Isolator
  • •Spindle Optimization to Support Heavy Rolls( ~3,000 kgf )
  • •Cooling Motors & Hydrostatic Bearing
  • •Hydrostatic Bearing + Linear Motor + Direct Drive Motor
Machine Specification
UNITSPECIFICATION
CapabilityRoll weightMax. 3000 kg
Roll diameter210 ~ 600 mm
Roll length1000 ~ 3,000 mm
BEDMaterialGranite
IsolationAir Isolation System
Headstock (C-axis)Bearing typeHydrostatic bearing
MotorDirect Drive Torque Motor
Rotation speed~ 300 rpm
Resolution0.018 arcsec

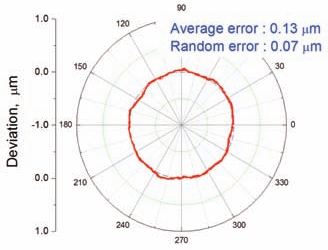

Radial Run-out≤ 0.3 ㎛
Axial Run-out≤ 0.3 ㎛
Repeatability≤ ± 0.5 arcsec (250mm)
Tail stockBearing typeHydrostatic bearing
Travel stroke2,700 mm (Min. chuck-to-chuck distance : 1000 mm)
Radial Run-out≤ 0.3 ㎛
Axial Run-out≤ 0.3 ㎛
Slides (X, Z-axis)Slide guideHydrostatic bearing
MotorCoreless Linear Motor

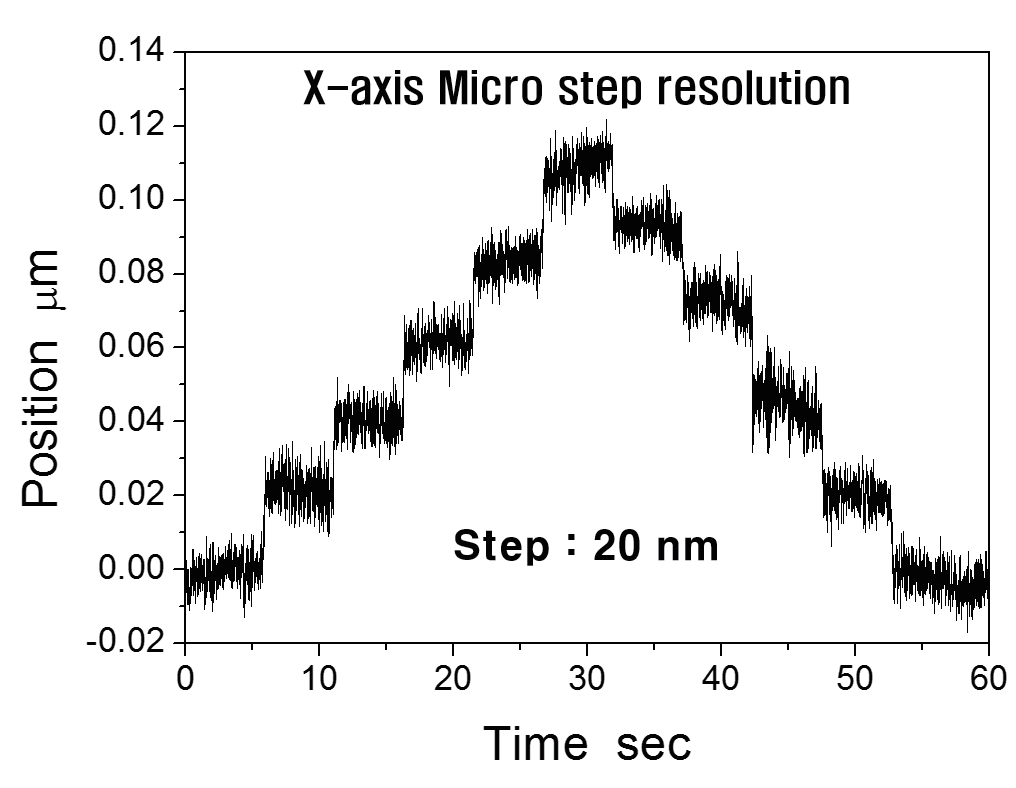

ResolutionX, Z : 1 nm
Stroke(Travel)X : 250 mm
Z : 3,000 mm (Max. machining length : 2000 mm)
Max. speedX-axis : 30 m/min (Normal 15 m/min)
Z-axis : 30 m/min (Normal 15 m/min)

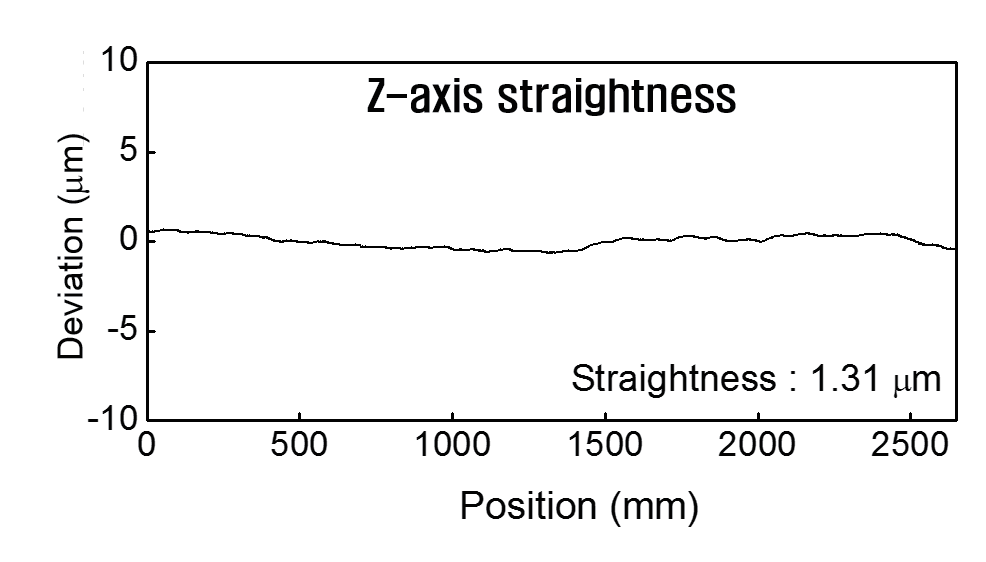

StraightnessX : 1um/stroke(250mm)
Z : 1 um/m
RepeatabilityX : ± 0.5um (250 mm)
Z : ± 2.5 um (Full travel)
Tool Index (Option)Bearing typeAngular Ball Bearing
MotorDirect Drive Torque Motor
Rotation speed~ 10 rpm
Resolution0.018 arcsec
Repeatability≤ ± 0.2arcsec
CNCOperating systemDelta tau UMAC or PowerPMAC
Multi Axis Control4 Axis (X, Z, C & B)
Facilitiesfloor space6m(W) X 2m(D) X 1.7m(H)
Power200VAC, 3Ph60Hz, 75kVA
Product Detail Images
  • 일반 프리즘

    일반 프리즘

  • 복합 프리즘

    복합 프리즘

  • 경사 프리즘

    경사 프리즘

  • 웨이브 패턴(FTS사용)

    웨이브 패턴(FTS사용)
