    Double Head Grinder

    Double Head Surface Grinder for Precision Face Grinding

    두 개의 연삭 헤드로 다량의 공작물을 동시에 연삭하는 수직형 평면 연삭기입니다.

    목록
Overview
  • •Model : CFG-455D
  • •Type : Vertical Single Disk Grinding Machine (2 Head)
  • •Grinding Wheel : Ø455 X Ø335 X 125 mm
  • •Spindle Motor : 22 kW x 2
  • •Cycle Time : 9 sec/EA
  • •Floor Space : 1,700 x 2,300 mm
  • •Weight : 13,000 kg
Process Capabilities
  • •Plunge Grinding : X, Z
  • •Face Grinding : X, Z, C
  • •Work Index : C (Rotation)
  • •Dual Head Simultaneous Grinding
Design Features

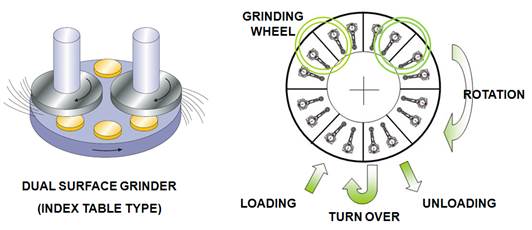

  • •Vertical Type Dual Head Surface Grinder
  • •Index Table Type (Work-piece Rotating)
  • •Spindle Motor : 22 kW x 2 (Inverter Control)
  • •Grinding Wheel Speed : 700 rpm (Variable)
  • •Servo Control : FANUC 35iB
  • •PLC : MITSUBISHI Q Series
Machine Specification
UNITSPECIFICATION
CapabilityWork sizeCon-Rod (HPF90S)
Grinding WheelØ455 x Ø335 x 125 mm
Cycle Time9 sec/EA
SpindleMotor22 kW x 2
Speed700 rpm (Inverter Control)
Index TableTypeRotary Index Table
Chucking2 Chuck Type
CNCOperating systemFANUC 35iB
PLCMITSUBISHI Q Series
FacilitiesFloor space1,700 x 2,300 mm
Weight13,000 kg
